MODEL |
SM-C5008-OS |
| SIGNAL SYSTEM |
NTSC |
PAL |
| IMAGE SENSOR DEVICE |
1/3" SONY SUPER HAD CCD |
| EFFECTIVE PICTURE ELEMENTS |
811(H) x 508(V) |
795(H) x 596(V) |
| SCANNING STANDARD |
2:1 INTERLACE |
| SYNCHRONIZING SYSTEM |
INTERNAL / LINE LOCK |
| HORIZONTAL RESOLUTION |
550 TV LINE , 600TV LINE(B / W) |
| OSD |
AVAILABLE |
| BACKLIGHT |
BLC / HSBLC / OFF SELECTABLE |
| S/N |
52dB (AGC OFF, WEIGHT ON) |
| MIN. ILLUMINATION |
0.000006LUX (IR LED ON) |
| WHITE BALANCE |
ATW / AWB / MANUAL / AWC ⇒ SET |
| ELECTRONIC SHUTTER SPEED |
AUTO (1/ 60 SEC ~ 1/ 120,000 SEC) |
| SENSE-UP |
OFF / AUTO (SELECTABLE LIMIT *2 ~ *258) |
| GAIN CONTROL |
HIGH,MIDDLE,LOW,OFF SELECTABLE |
| 3 DNR |
OFF / ON (1~50 LEVEL ADJUSTABLE) |
| D-WDR |
INDOOR / OUTDOOR / OFF |
| MOTION DETECTION |
ON / OFF (4 ZONE , ALARM OUTPUT) |
| PRIVACY |
ON / OFF (8 ZONE) |
| MIRROR |
OFF / MIRROR / V-REV / ROTATE |
| FREEZE |
ON OFF |
| SHARPNESS |
0~31 (LEVEL ADJUSTABLE) |
| D&N SELECTION |
COLOR / BW / AUTO |
| DIGITAL ZOOM |
ON(*32) / OFF |
| BLEMISH COMPENSATION |
256 POINT (EVEN 128 POINT , ODD 128 POINT) |
| POWER |
DC 12V |
| POWER CONSUMPTION |
CDS ON : 350mA MAX |
| LENS |
DC AUTO IRIS VARIFOCAL LENS (5mm~50mm) |
| OPERATING TEMP |
-10 ~ +50 DEG C.RH 95% MAX |
| STORAGE TEMP |
-20 ~ +60 DEG C.RH 95% MAX |

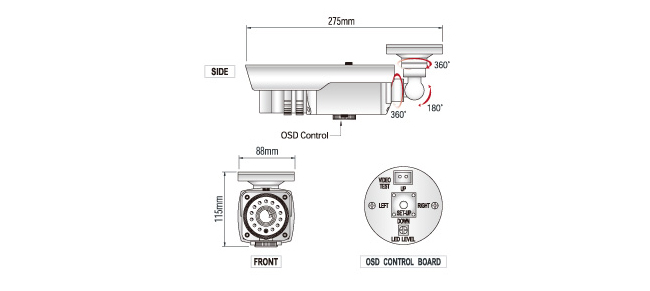

| DIMENSION |
88mm(W) x 115mm(H) x 275mm(D)
|
| WEIGHT |
1.8Kg |
SM-C5008-OS
SPECIFICATIONS
