SM-CKB10AZ
1/3" Sony Super HAD CCD II.
IR Cut Filter Removable (ICR) for 24Hours complete monitoring.
18X(Optical:18X ,Digital:10X) Auto Focus Zoom Lens (4.7~84.6mm).
DWS (Dual Window Structure) lay out for scattered reflection.
Built-in 10ea Super Powerful Hybrid IR LEDs & Cooling fan & Weather Proof Housing.
Vandal-proof case with Poly-Carbonate & Hard Coating Front Glass.
Illuminating Distance : Max. 150m Outdoor.

 SPECIFICATIONS

MODEL
SM-CKB10AZ
SIGNAL SYSTEM NTSC PAL
IMAGE SENSOR DEVICE 1/3" Sony Super HAD CCD II
EFFECTIVE PICTURE ELEMENTS 811(H) x 508(v) 795(H) x 596(V)
SCANNING STANDARD 2:1 INTERLACE
SYNCHRONIZING SYSTEM INTERNAL
HORIZONTAL RESOLUTION MORE THAN 550 TV LINE
ELCTRONIC SHUTTERCONTROL AUTO SHUTTER 1/60~1/100000 AUTO SHUTTER 1/50~1/100000
GAMMA CORRECTION 0.45
MINIMUM ILLUMINATION 1.0 Lux /F 1.8 ※IR ON : 0LUX
VIDEO OUTPUT LEVEL 1Vp-p/75 ohms , UNBALANCED
VIDEO S/N RATION 50db (ACG OFF)
WHITE BALANCE AUTO (2500˚K~9600˚K)
BACKLIGHT COMPENSATION YES
STORAGE TEMPERATURE -30℃~80℃
OPERATING TEMPERATURE -10℃~50℃
POWER REQUIREMENT DC12V + 10%
POWER CONSUMPTION(TOTAL) 10PCS 1700mA
LENS STANDARD 4.7~84.6mm(Optical 18X,Digital 10X) Auto Focus Zoom Lens(F1.6~F2.8)
Angle of Infrared LED 10°
DIEMENSIONS 215(L) x 115.2(W) x 111.7(H)mm
WEIGHT 2.5Kg

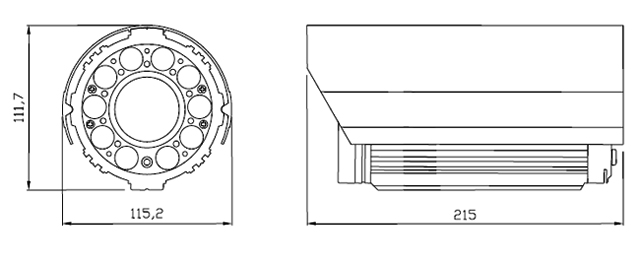

 DIMENSIONS
