SM-HYB36AV
Intelligent camera supported motion and PIR detection system with white light and IR LED
Unlike other general IR cameras which can only present B/W image at night, exclusively design as a motion detection system to activate the white light LED within 3M~7M camera lens range distance in color image, in the other hand when IR is ON, shows  B/W image only
Hybrid LED has White light and IR light which use dual light package technology
Motion detection 3M ambits, PIR detection 7M ambits. Detection Mode Selective
Power saving control, also it can be an auxiliary lighting and warning purpose
Installation Field: Basement / Underground parking / Factory / Lane / Passage / Courtyard / Enclosure

 SPECIFICATIONS

MODEL
 SM-HYB36AV
SIGNAL SYSTEM NTSC PAL
IMAGE SENSOR DEVICE 1/3" INTERLINE TRANSFER CCD
EFFECTIVE PICTURE ELEMENTS 811(H) x 509(V) 795(H) x 596(V)
SCANNING STANDARD 2:1 INTERLACE
SYNCHRONIZING SYSTEM INTERNAL
HORIZONTAL RESOLUTION 530 TV LINE 625 TV LINE
ELCTRONIC SHUTTERCONTROL AUTO SHUTTER 1/60~1/100,000 AUTO SHUTTER 1/50~1/100,000
GAMMA CORRECTION 0.45
MINIMUM ILLUMINATION 0.1 lux color / F1.4
VIDEO OUTPUT LEVEL 1Vp-p/75 ohms , composite
IR DISTANCE 35M( 36pcs IR LED / 36, purchase White)
IR TRIGGER 28/33 IR ON / OFF
WHITE LIGHT DISTANCE <20M(36pcs IR LED, 36 Purchase White)
WHITE LIGHT TRIGGER 8LUX
MOTION DETECT RANGE 3M
MOTION DETECT LIGHT CHANGE / PICTURE CHANGE
PIR DETECT RANGE 7M
PIR DETECT TEMPERTURE
LENS TYPE Vari-Focal Lens 3.7-12mm,
IR CUT On
POWER COURCE DC 12V
POWER CONSUMPTION White LED: 3.6W (Max) / IR LED: 5.36W
CURRENT White LED: 292mA (Max) / IR LED: 447mA (Max)
WEIGHT N.W / G.W : 0.9Kg / 1.07Kg
DIMENSION 88(W) x 192(H) x 201(D) mm
STORAGE TEMPERATURE -12 to 70℃ (-4 to 158℉)
WEATHERPROOF IP66
CERTIFICATION CE / FCC
OPTIONAL Alarm ; Heater (0℃ ON/ 5℃ OFF)

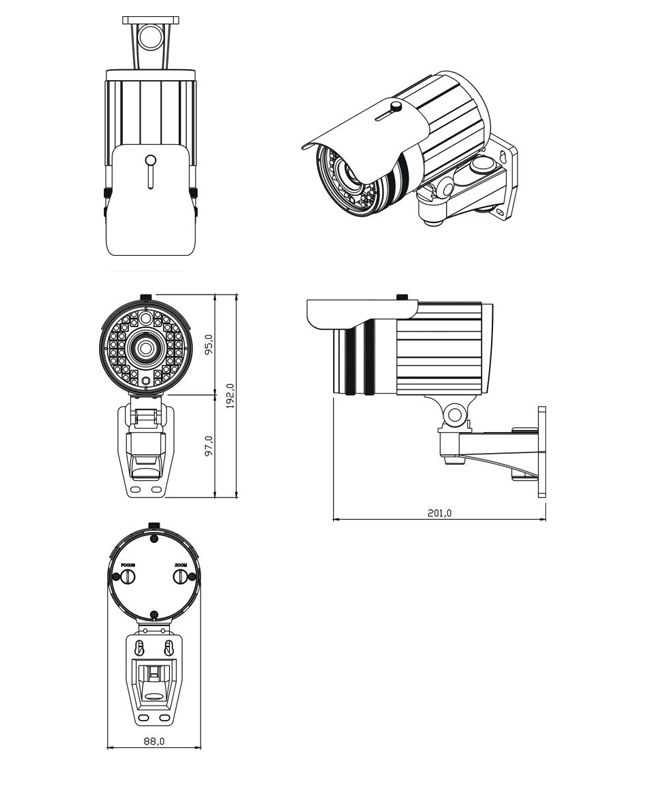

 DIMENSIONS
