DCO-HYBD24
1/3” COLOR CCD SENSOR INTERLINE
Intelligent camera supported motion and PIR detection system with white light and IR LED
Unlike other general IR cameras which can onlypresent B/W image at night, exclusively design as a motion detection system to activate the white light LED within 3M~7M camera lens range distance in color image, in the other hand when IR is ON, shows B/W image only.
Power saving control, also it can be an auxiliary lighting and warning purpose
Installation Field: Basement/ Underground parking/ Factory/ Lane/ Passage/ Courtyard/ Enclosure
Lens 6mm/ DC 12V
3D free angle adjustment/ Weatherproof IP66

 SPECIFICATIONS

MODEL
 DCO-HYBD24
SIGNAL SYSTEM NTSC PAL
IMAGE SENSOR DEVICE 1/3" COLOR CCD SENSOR INTERLINE
EFFECTIVE PICTURE ELEMENTS 537(H) x 505(V) 537(H) x 597(V)
SCANNING STANDARD 2:1 INTERLACE
SYNCHRONIZING SYSTEM INTERNAL
HORIZONTAL RESOLUTION 420 TV LINE
ELCTRONIC SHUTTERCONTROL AUTO SHUTTER 1/60~1/100000 AUTO SHUTTER 1/50~1/100000
GAMMA CORRECTION 0.45
MINIMUM ILLUMINATION 0.05 lux color F1.8
VIDEO OUTPUT LEVEL 1Vp-p/75 ohms , composite
VIDEO S/N RATION 70db (ACG OFF)
WHITE BALANCE AUTO (2400˚K~9600˚K)
BACKLIGHT COMPENSATION YES
STORAGE TEMPERATURE -20 to 70℃ (-4 to 158℉ )
POWER REQUIREMENT DC12V + 10%
POWER CONSUMPTION(TOTAL) White LED 240mA / IR 240mA
LENS STANDARD Board Lens 6.0mm
IR Distance 20M(24pcs IR LED)
DIEMENSIONS 120Φ x 99.1(H)mm
WEIGHT 815g

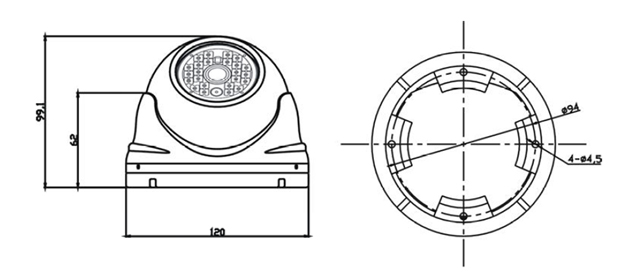

 DIMENSIONS
