YV5 X 2.7R4B-SA2
Advanced design engineering special optic glass adopted,best suited for color,Black and White and Day and Night cameras.
Broad range of f2.7-13.5mm,supporting various applications.
wide aperture of F1.3, optimizing the performance at low lighting intensity
High accuracy aspheric lens adopted, achieving the high quality image
Built-in ND filter of T360, supporting high sensitivity cameras

 SPECIFICATIONS

MODEL
 YV5 X 2.7R4B-SA2
FOCAL LENGTH (mm) 2.7 ~ 13.5 (5x)
IRIS RANGE F1.3 ~ T360 (EQUIVALENT TO F360)
OPERATION ZOOM MANUAL
FOCUS MANUAL
IRIS AUTO (DC TYPE) (*1)
ANGLE OF VIEW
(H x V) 		1 / 3 " WIDE 99˚ 42' x 73˚ 17'
TELE 20˚ 37' x 15˚ 30'
1 / 4 " WIDE 74˚ 17' x 55˚ 26'
TELE 15˚ 30' x 11˚ 38'
FOCUSING RANGE (FROM FRONT OF THE LENS) (m) ∞ ~ 0.3
OBJECT
DIMENSIONS
AT M.O.D
(H x V) (mm)		 1 / 3 " WIDE 741 x 473
TELE 115 x 86
1 / 4 " WIDE 473 x 328
TELE 86 x 64
BACK FOCAL DISTANCE (IN AIR) (mm) 8.91
EXIT PUPIL POSITION (FROM IMAGE PLANE) (mm) 96
FILTER THREAD (mm) -
MOUNT CS
MASS (g) 70
COIL RESISTANCE DRIVE COIL 190Ω
DAMPING COIL  500Ω
CURRENT CONSUMPTION 23mA (MAX) at DC 4V
REMARKS

· WITH METAL MOUNT
(*1) WHEN POWER IS TURNED OFF,IRIS WILL
AUTOMATICALLY CLOSE.

YV5 X 2.7R4B-SA2 : LONG CABLE TYPE (230mm)

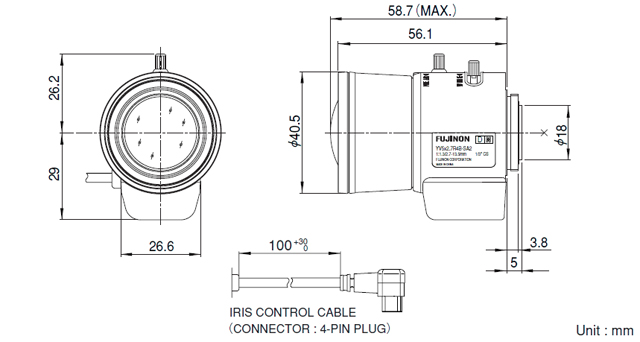

 DIMENSIONS
