T-PI-741B-OS
1/3" Sony Super HAD color CCD
Ultra High Resolution of 530TV lines
D&N (IR-Cut filter Removable, ICR)
Removed noise, ghosting effect with SSNR
0.3 Lux (color) / 0.002 Lux (Sens-up mode)
White Balance : ATW / AWC / Manual selectable
(Color Temperature 1800K~10,500K)
Privacy image masking with free position
Motion Detection
OSD (On Screen Di splay)
S/N ratio of 50dBl
Power source: AC 24V(NA/PA), DC 12V(ND/PD), AC 230V(PH)

 SPECIFICATIONS

MODEL
T-PI-741B-OS
IMAGE SENSOR DEVICE 1/3" SONY SUPER HAD CCD
EFFECTIVE PIXELS NTSC=768(H) * 494(V) / PAL=752(H) * 582(V)
HORIZONTAL RESOLUTION MORE THAN 550 TV LINE
MIN. ILLUMINATION 0.00001 LUX (SENSUP x 258)
ONSCREEN DISPLAY YES
S/N (Y SIGNAL) 52 dB (AGC OFF)
BACKLIGHT BLC / HSBLC / OFF SELECTABLE
WHITE BALANCE ATW / AWC / MANUAL (1,800˚K ~ 10.500˚K)
ELECTRONIC SHUTTER SPEED AUTO ( 1/60 sec ~ 1/120,000sec)
SENSE-UP OFF / AUTO ( SE;ECTABLE LIMIT x2~x258)
GAIN CONTROL HIGH , MIDDLE , LOW , OFF SELECTABLE
3DNR OFF / ON (1~50 LEVEL ADJUSTABLE)
D-WDR INDOOR / OUTDOOR / OFF
MOTION DETECTION ON/OFF (4ZONE , ALARM OUTPUT)
PRIVACY ON / OFF (8 ZONE)
MORRPR OFF / MIRROR / V-Rev / ROTATE
FREEZE ON / OFF
SHARPNESS 0 ~ 31 (LEVEL ADJISTABLE)
D & N SELECTION COLOR / BW / AUTO
DIGITAL ZOOM ON (x32) / OFF
BLEMISH COMPENSATION 256 POINT (EVEN 128 POINT, ODD 128 POINT)
POWER DC 12V
POWER CONSUMPTION 120mA
LENS 3.6mm FIXED BOARD LENS
OPERATING TEMP. -10~+50 Deg C.RH 95% Max.
STORAGE TEMP. -20~+60 Deg C.RH 95% Max.
DIMENSION 34mm(W)*34mm(H)*30mm(D)
WEIGHT 60g

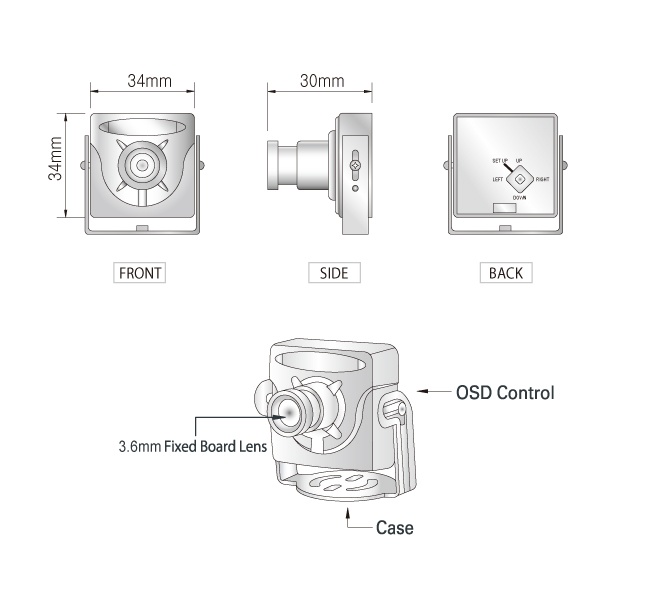

 DIMENSION
