WVM-1C15
Compatible with most IR cameras (15W)
"Video & Power" transmission over 1 coaxial cable
Maintain high quality video & excellent interference immunity
Long distance transmission up to Max. 1Km (with RG11)
No need of power wiring & saving infrastructure cost
Installation improvement (cost saving 25~30%)
Easy if installation with BNC harness
Surge protection function

 SPECIFICATIONS

MODEL
WVM-1T15
VIDEO OUT CVBS 1.0Vp-p , 75Ω Term.
POWER IN FOR CAMERA / DC12V, 500mA
BANDWIDTH 8MHz
MAX. DISTANCE 1Km WITH STANDARD RG6 CABLE
CONNECT PORT IN / OUT : DC-F & BNC-M HARNESS (25cm)
RF OUT : BNC-F
TEMPERATURE / HUMIDITY -10℃ ~ +50℃ / 0 ~ 80%
CASE BODY / WEIGHT ALUMINUM / 100g
DIMENSION 76(W) x 42(H) x 25(D) mm

MODEL
WVM-1R15
VIDEO OUT CVBS 1.0Vp-p , 75Ω Term.
POWER IN AC/DC ADAPTOR +48V 1.0A
BANDWIDTH 8MHz
TRANSMISSION DISTANCE AUTO ADJUSTMENT
STATUS LED
(RED COLOR LED)
ON : WORKING
FLICKERING : CHECK
CONNECT PORT VIDEO OUT : BNC-M HARNESS
RF In : BNC-F
TEMPERATURE / HUMIDITY -10℃ ~ +50℃ / 0 ~ 80%
CASE BODY / WEIGHT ALUMINUM / 130g
DIMENSION 75(W) x 60(H) x 25(D) mm
ADAPTOR ELECTRIC DC +48V / 1.0A
DIMENSION 116(W) x 49.5(H) x 31(D) mm

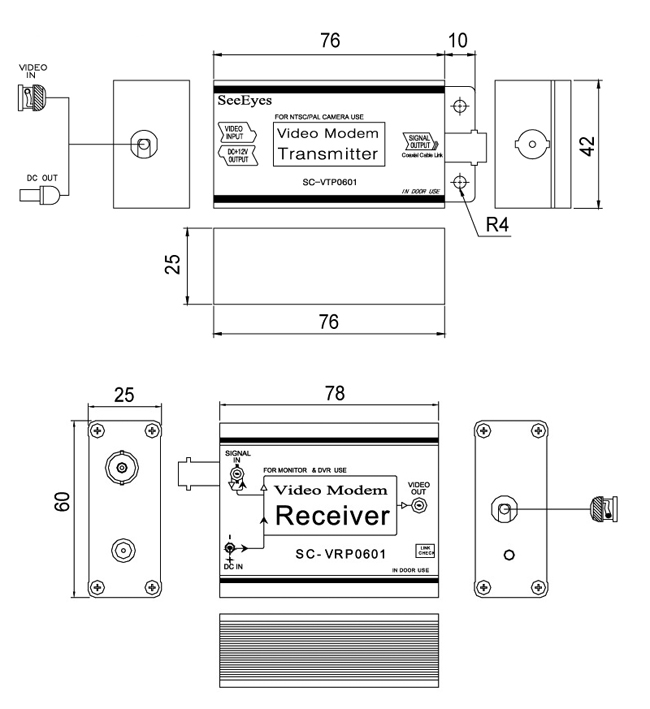

 DIMENSION
