HOME > PRODUCT > CAMERA > ONE CABLE

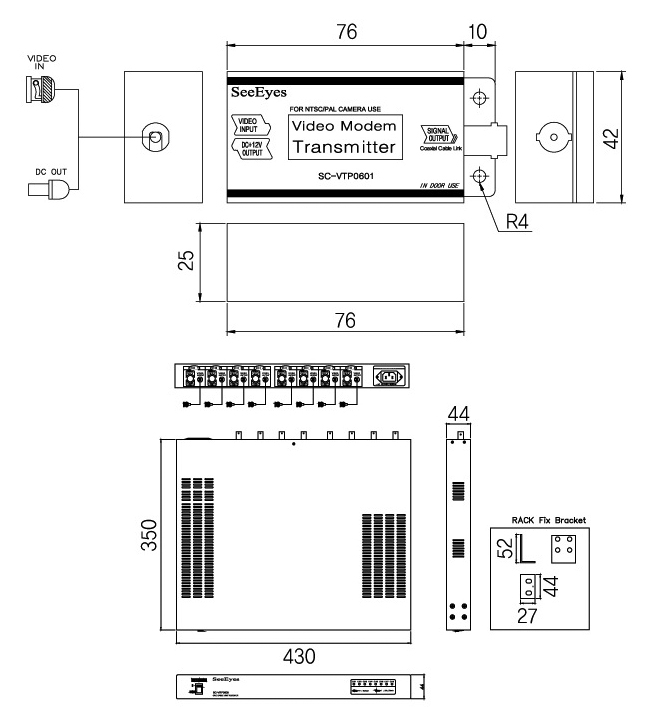

"Video & Power" transmission over 1 coaxial cable Long distance transmission up to Max. 1Km (with RG6) Maintain high quality video & excellent interference immunity No need of power wiring & saving infrastructure cost Auto distance control for video signal Installation improvement (cost saving 25~30%) Easy if installation with BNC harness Auto diagnosis for cable status and safe power supply Surge protection  SPECIFICATIONS MODEL WVM-8T06 VIDEO OUT CVBS 1.0Vp-p , 75Ω Term. POWER IN FOR CAMERA / DC12V, 500mA BANDWIDTH 8MHz MAX. DISTANCE 1Km WITH STANDARD RG6 CABLE CONNECT PORT IN / OUT : DC-F & BNC-M HARNESS POWER OUT : DC-F , RF OUT : BNC-F TEMPERATURE / HUMIDITY -10℃ ~ +50℃ / 0 ~ 80% CASE BODY / WEIGHT ALUMINUM / 100g DIMENSION 76(W) x 42(H) x 25(D) mm MODEL WVM-8R06 VIDEO OUT CVBS 1.0Vp-p , 75Ω Term. POWER IN AC 100~240V, 5/60Hz BANDWIDTH 8MHz MAX. DISTANCE AUTO STATUS LED 2 COLOR (GREEN : NORMAL, RED : LINK ERROR) CONNECT PORT VIDEO OUT : BNC-M HARNESS RF In : BNC-F TEMPERATURE / HUMIDITY -10℃ ~ +50℃ / 0 ~ 80% CASE BODY / WEIGHT STEEL / 4.0Kg DIMENSION 430(W) x 44(H) x 350(D) mm  DIMENSION
