410K, 1/4" Sony Progressive Scan CCD |
|
Built-in Hitachi DSP 8 Camera Module |
|
23x AF Optical Zoom, (Total 230X) |
|
Min. illumination 0.009Lux (DSS) |
|
Perfect WDR Functions |
|
Smart Zoom, Auto Flip |
|
Variety of surveillance |
|
8 Privacy Zones, Motion Detection |
|
|
|
|
|
|
 SPECIFICATIONS
MODEL |
PEC-ED275H |
| SIGNAL SYSTEM |
NTSC |
PAL |
| IMAGE SENSOR DEVICE |
1/4" interline transfer CCD (SONY) with DSP 6 |
| TOTAL / EFFECTIVE PIXEL |
410K / 380K Pixels |
470K / 440K Pixels |
| MINIMUM ILLUMINATION |
23X Optical Zoom, F=1.6, f= 3.6 ~ 82.8 mm |
| DIGITAL ZOOM |
10X (23X ~ 235X) |
| MINIMUM OBJECT DIST. |
AUTO |
| LUMINANCE S/N RATIO |
More than 50dB |
| CAMERA INTERFACE |
Format: Async, 1 start bit, 1 stop bit, 8 data bits, no parity
More: 1Half Duplex, Command -> Response, 9600 bps |
| SYNC. SYSTEM |
Internal / External (Line lock) |
| FORCE MODE |
Auto / Manual |
| WDR |
Auto / Off / On |
| WHITE BALANCE |
AUTO / INDOOR / OUTDOOR |
| BLC CONTROL |
ON / OFF / AUTO, BLC Level adjustable |
| VIDEO OUTPUT |
Composite output 75ohm terminated 1.0 Vpp, Y/C separate output |
| SHUTTER SPEED |
Auto, (1/120~1/10,000), 28 Steps |
AUTO, (1/100~1/10,000), 28 Steps |
| CAMERA CONTROL |
RS-485 / RS-422 |
| ALARM INPUT |
4ch, active high / low selective |
| ALARM OUTPUT |
1ch relay output |
| PRESET CONTROL |
128 presets |
| PRIVACY MASKING ZONE |
8 ZONES |
| OPERATION TEMPERATURE |
- 40℃ to 60℃ (- 40°F to 140°F) |
| STORAGE TEMPERATURE |
- 5℃ to 60℃ (23°F to 140°F) |
| OPERATION HUMIDITY |
LESS THAN 90%RH |
| SUPPLIED VOLTAGE |
AC 24V, 50/60 Hz |
| POWER CONSUMPTION |
MAX. 10W (MOTOR ACTIVE) |
| DIMENSIONS (W x H) |
189 mm X 221.8 mm |
| WEIGHT |
Approx 3.0 Kg |
| ACCESSORIES |
Body of Speed Dome Camera X 1 EA
For attaching screw bolts X 4 EA
Manual book X 1 EA |

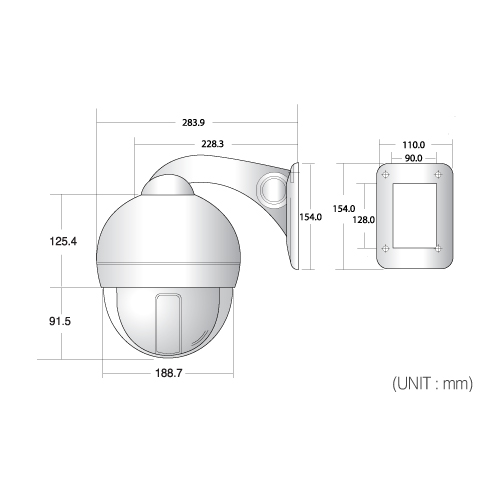

외관도
|
|
|
|
|
PEC-ED275H
