H.264 Algorithm Compression |
|
4CH Real-time display on 120FPS/NTSC or 100FPS/PAL
|
|
LCD 16:9 Ratio
|
|
Triple Stream,recording at D1 and viewing at CIF remotely |
|
Watermark & Scrambling examination to verify recorded files
|
|
CMS (Central Management System) supports unlimited DVR/cameras with PTZ controls
|
|
DIDO / PTZ / RS-485 supported |
|
Intelligent 3G/GPRS Mobile Surveillance :
Symbian,Windows Mobile,JAVA,iPhone,Blackberry,Android
|
|
Gui with 32bit True color |
|
Upgrade Firmware by USB or Network |
|
SATA devices supported |
|
Smaller size allows user to work efficiently and save space |
|
Recording time upto 6 months(2TB SATA HDD) |
|
|
|
|
|
 SPECIFICATIONS
MODEL |
MDR-H1941T |
| VIDEO FORMAT |
NTSC |
PAL |
| LCD SIZE |
19" |
| RESOLUTION |
1280 x 1024 (SXGA) |
| VIEWING ANGLE |
170/160 (TYP.) |
| BRIGHTNESS |
300 cd/m2 |
| CONTRAST RATIO |
1000:1 |
| REPONSE TIME(Tr+Tf) |
5ms |
| VIDEO SYSTEM |
NTSC / PAL SWITCH SELECTABLE |
| VIDEO INPUT |
BNCx4 , 1.0Vp-p , 75ohm |
| VIDEO OUTPUT |
BNCx2 , 1.0Vp-p , 75ohm |
| AUDIO INPUT |
1ch , RCA |
| AUDIO OUTPUT |
1ch , RCA |
| CONTROL |
USB MOUSE, IR CONTROLLER , TOUCH PANEL |
| HDD |
SATA HDD (2TB MAX) x 1 |
| DISPLAY DIVISION |
1, 4 SEQ |
| ZOOM |
2x ~ 8x (PLAYBACK ZOOM SUPPORT) |
| RECORDING COMPRESSION |
H.264 main profile |
| RECORDING MODE |
MANUAL , SCEDULE , ALARM , HOLIDAY |
| RECORDING RESOLUTION |
704 x 480
704 x 240
352 x 240 |
704 x 576
704 x 288
352 x 288 |
| RECORDING FRAME RATE |
60,120,120 FPS |
50,100,100 FPS |
| RECORDING QUALITY |
HIGHEST,HIGH,NORMAL,LOW,LOWEST |
| MOTION DETECTION |
SENSITIVITY : 10 LEVELS FOR EACH CHANEL |
| AUTO SWITCHING |
1~999 SEC (SWITCHING TIME) |
| WATER MARK |
YES |
| PLAY BACK |
NORMAL , REW & FF (2x / 4x / 8x / 16x / 32x / 64x ) |
| SEARCH MODE |
DATE , TIME , EVENT (MOTION,SENSOR) , CAMERA |
| NETWORK SERVICE |
TCP/IP , HTTP , DHCP , SMTP(SSL) , ADSL , LAN , DDNS |
| 3G DEVICE |
WIN 5.0 6.0 SYMBIAN , iPHONE , PDA , BLACKBERRY, JAVA , ANDROID |
| GUI INTERFACE |
SUPPORTED GUI 16 BIT TRUE COLOR |
| BACK UP |
USB x 1 , NETWORK |
| DIMENSION |
407.95(W) x 276(D) x 377.97(H) mm |
|

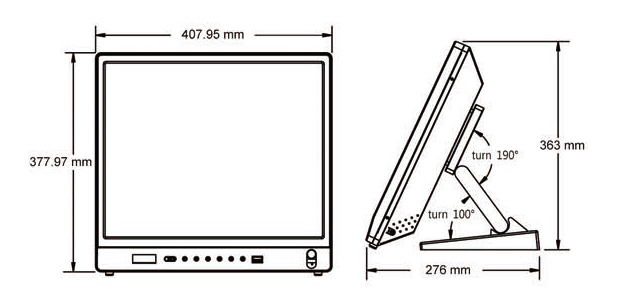

DEMENSION
|
|
|
|
|
MDR-H1941T (4CH)
